Technical Overview
Installation type
Built-in
Width
86 cm
Cooktop-based rangehood control
No
Sound pressure recirculated air level 2
53 dB(A) re 1 pW
climate control Sensor
No
Operating mode
Exhaust / Recirculation (Accessory available separately)
Max. ducted extraction
610 m³/h
Boost position air extraction
800 m³/h
Key Features
Specifications
Width
86 cm
Colour of the body
Stainless steel
Installation type
Built-in
Operating mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
170 W

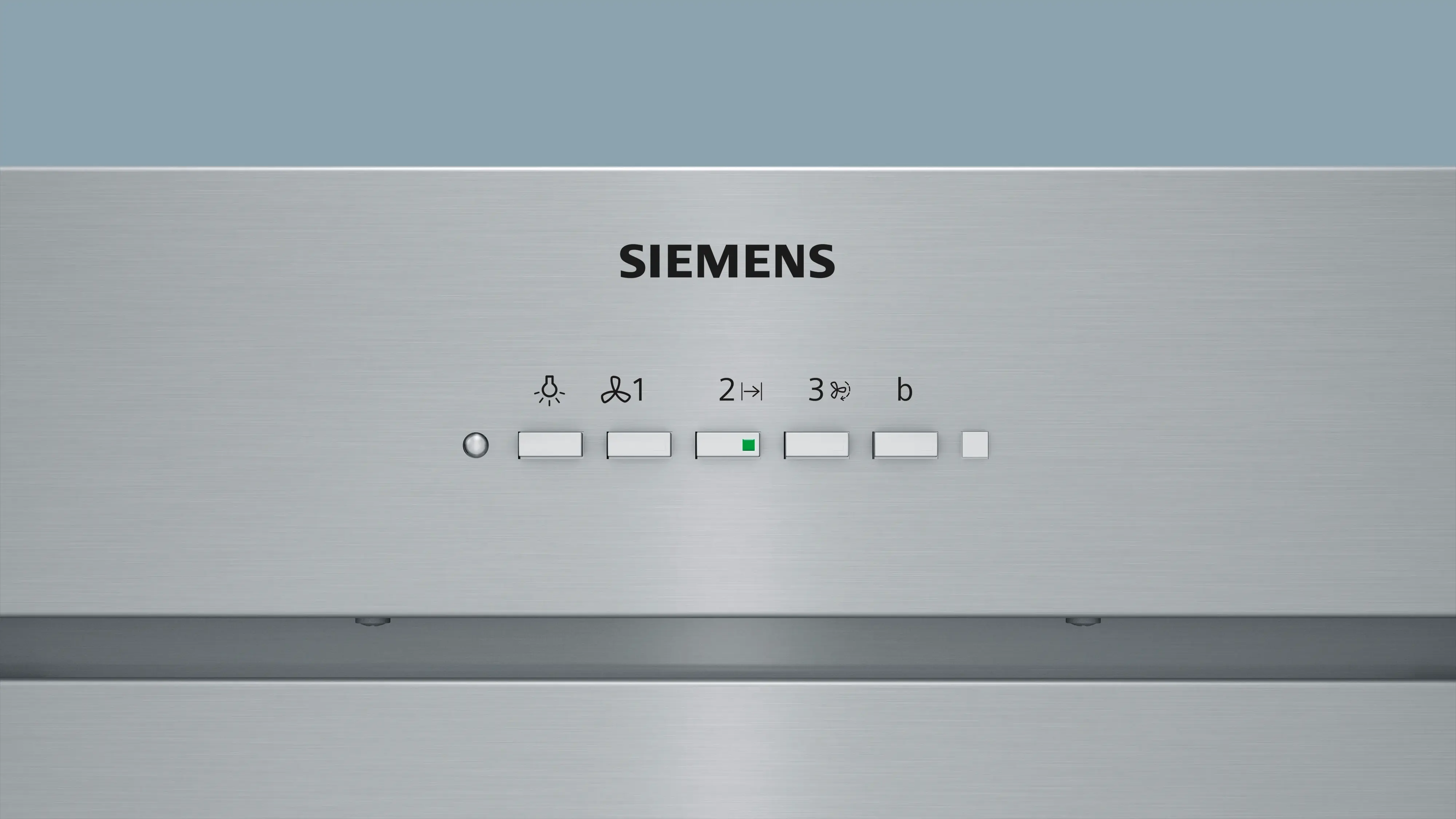

Controls
Button
Number of power settings
3-stages + intensive setting
Max. ducted extraction
610 m³/h
Boost position air extraction
800 m³/h
Sound power at max. speed (2010/30/EC)
64 dB
Sound power boost (2010/30/EC)
70 dB
Max. recirculation
563 m³/h
Boost position output recirculating
727 m³/h
Sound power at max. speed (recirculation)
71 dB
Sound power boost (recirculation)
77 dB

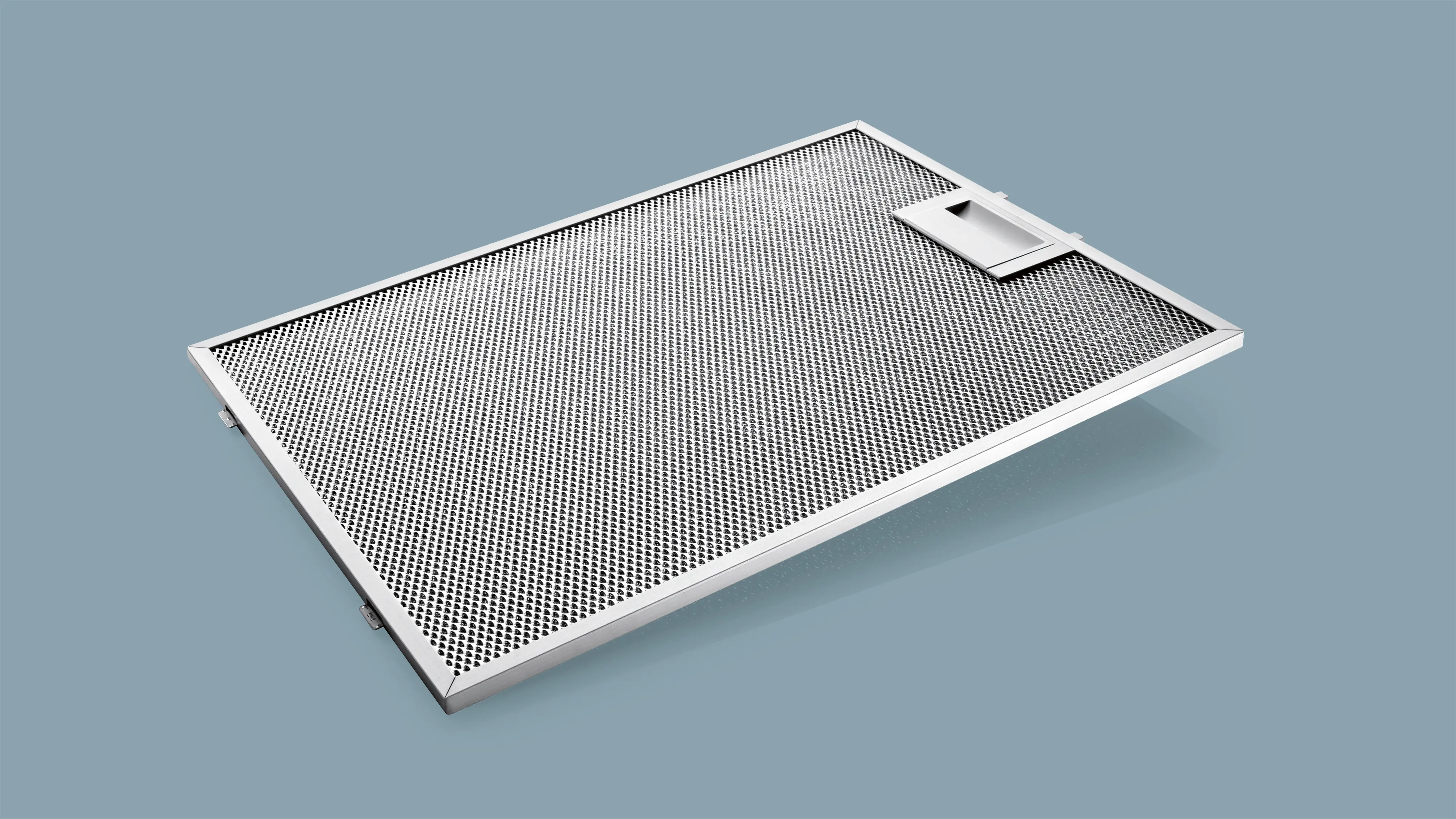

Grease filter material
Washable aluminium
Energy efficiency rating
5 star
Total annual energy consumption
25.5 kWh/year
Included user manuals
[EN]

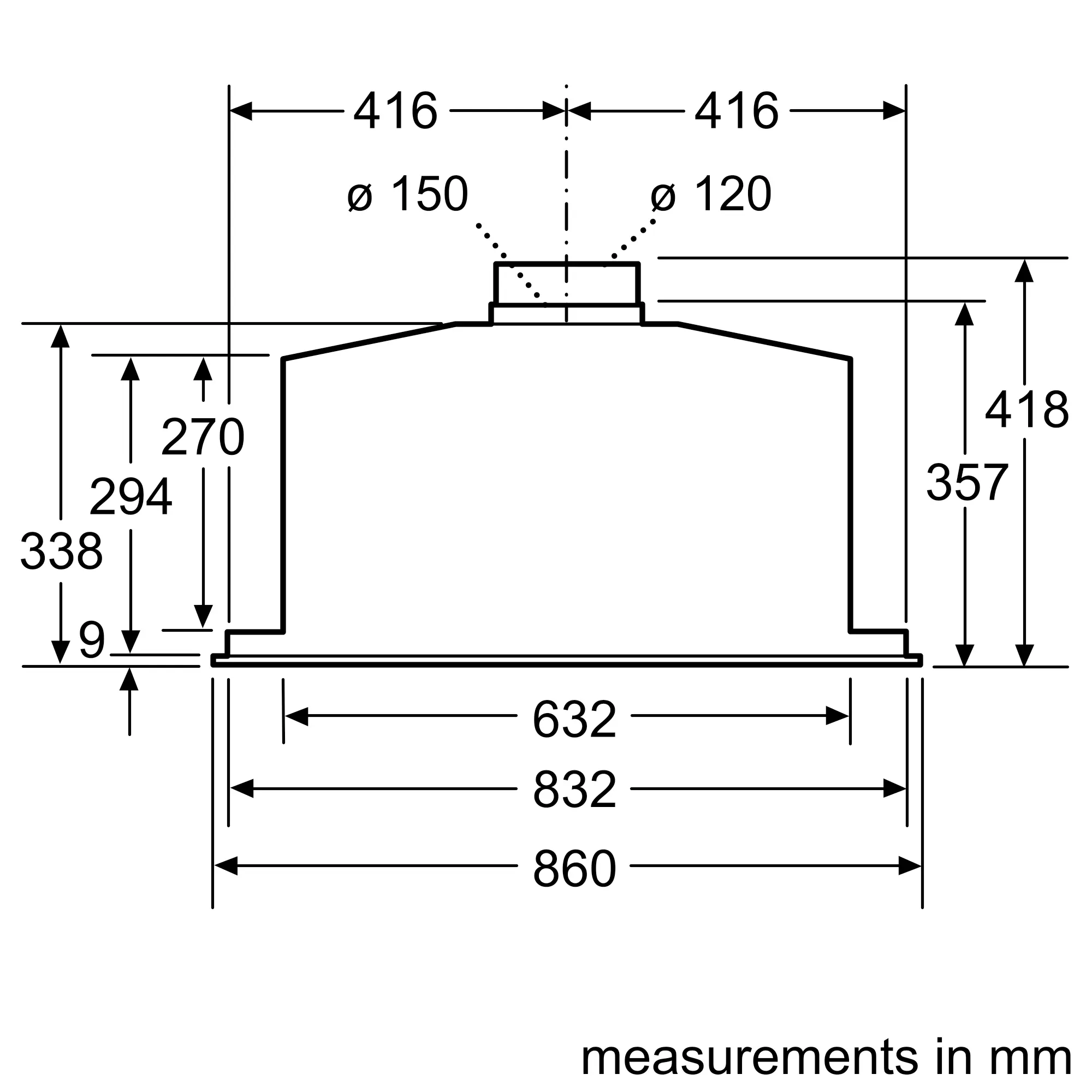

Height of the appliance
418 mm
Width of the appliance
860 mm
Depth of the product
282 mm
Dimensions of the packed product
370x465x970 mm
Minimum distance above an electric cooktop (EU)
500 mm
Minimum distance above a gas cooktop
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
150 cm
Net weight
9.7 kg
Handle bar
Not applicable
Appliance height exhaust air max
418 mm
Appliance height exhaust air min
418 mm
Appliance height recirculating max
418 mm
Appliance height recirculating min
418 mm

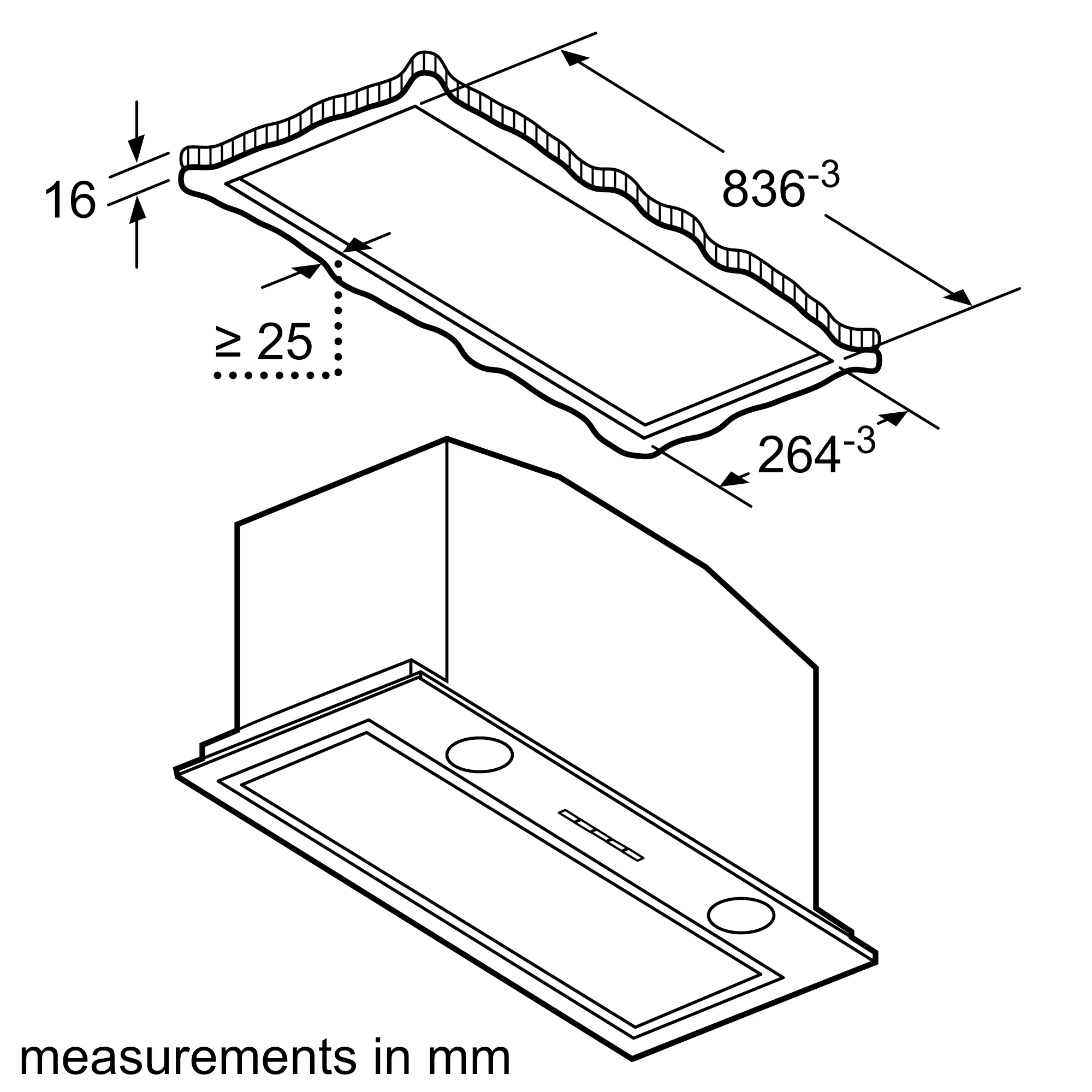

Maximum width for installation
836 mm
Minimum width for installation
836 mm
Depth for installation
264 mm
1 / 0
climate control Sensor
No
iQdrive motor
Yes
Extremely silent appliances
No
Clean filter reminder
Yes
Boost mode
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
2 W
Total luminance
266 lux
Color temperature
Cold white (4.000 K)
Illumination type softlight
No
Light colour customisable by Home Connect
No
Ambient light
No
Home Connect
No
Cooktop-based rangehood control
No
Smart Hood Automatic
No
